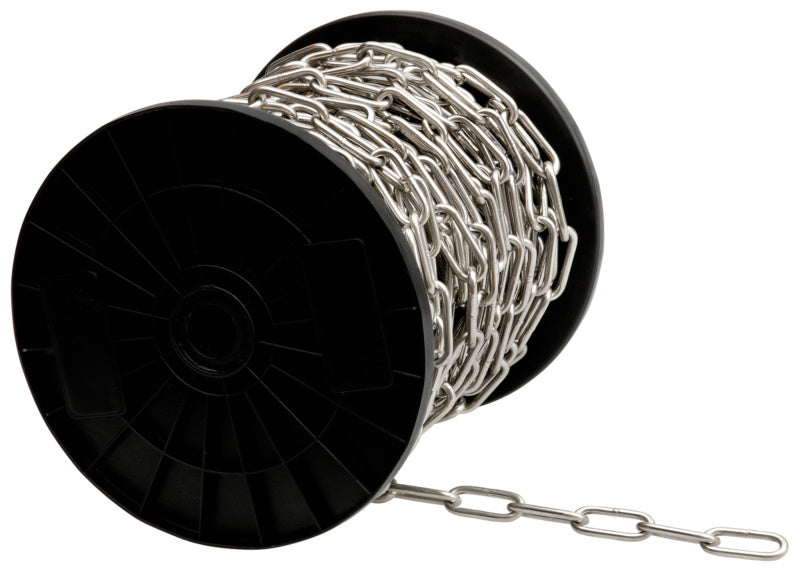

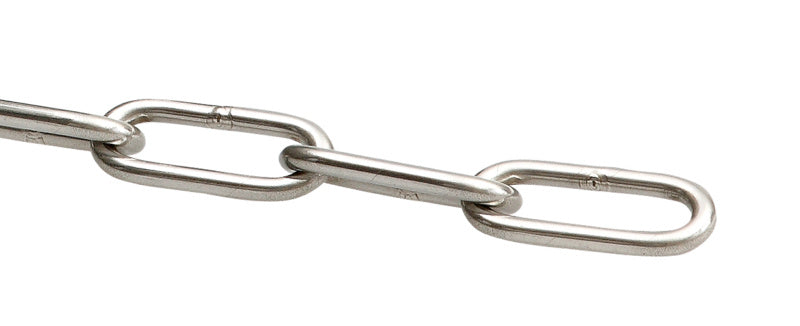

Round steel chain, long link C

  • Wire diameter: 4.2 mm
  • Diameter: 4 mm
  • Internal width: 7 mm
  • Length: 30 m
  • Spool width external: 92 mm
  • Spool diameter: 200 mm
  • Partition: 32 mm
  • Max. loading weight: 80 kg
  • Weight per 100 metre: 26 kg
  • Max. load-carrying capacity: 80 kg
  • Material: Stainless steel A2
  • Surface: Plain
  • DIN: 5685-1
  • Width Package: 200.00
  • Height Package: 92.00
  • Depth Pagage: 200.00
  • Cross Weight: 274.00
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
Filters
C 40

Chains in line with this standard are not tested for strength as defined in DIN 685 Part 3 and must not be used for bearing or carrying loads as defined in DIN 15003 or for the static suspension of loads.
The stress limits of the chains are calculated values. The chains have not been tested.
Depending on the winding, the reel can give up to 1.0 cm.
  • Wire diameter: 4.2 mm
  • Diameter: 4 mm
  • Internal width: 7 mm
  • Length: 30 m
  • Spool width external: 92 mm
  • Spool diameter: 200 mm
  • Partition: 32 mm
  • Max. loading weight: 80 kg
  • Weight per 100 metre: 26 kg
  • Max. load-carrying capacity: 80 kg
  • Material: Stainless steel A2
  • Surface: Plain
  • DIN: 5685-1
  • Width Package: 200.00
  • Height Package: 92.00
  • Depth Pagage: 200.00
  • Cross Weight: 274.00
