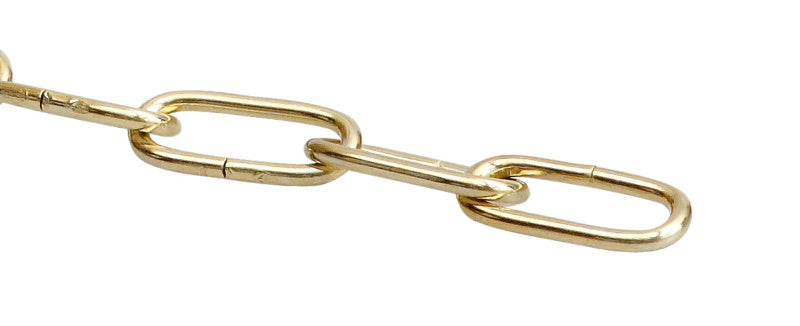

Round steel chain, half link A
- Diameter: 2.5 mm
- Internal width: 4.5 mm
- Length: 40 m

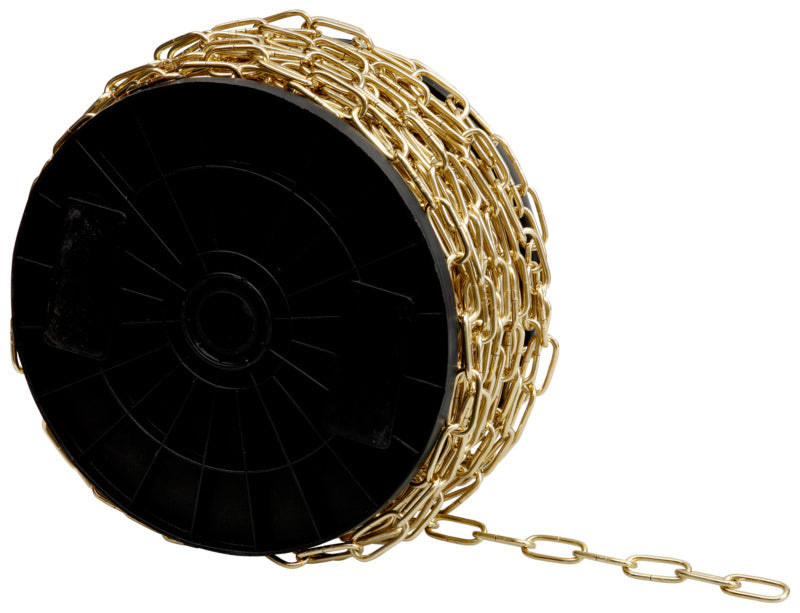

- Spool width external: 95 mm
- Spool diameter: 200 mm
- Partition: 14 mm
- Max. loading weight: 30 kg
- Weight per 100 metre: 11 kg
- Max. load-carrying capacity: 30 kg
- Material: Steel
- Surface: Brass plated
- DIN: 5685-2
- Width Package: 213.00
- Height Package: 118.00
- Depth Pagage: 212.00
- Cross Weight: 146.00
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
A 25
Chains in line with this standard are not tested for strength as defined in DIN 685 Part 3 and must not be used for bearing or carrying loads as defined in DIN 15003 or for the static suspension of loads.
The stress limits of the chains are calculated values. The chains have not been tested.
Depending on the winding, the reel can give up to 1.0 cm.
Chains in line with this standard are not tested for strength as defined in DIN 685 Part 3 and must not be used for bearing or carrying loads as defined in DIN 15003 or for the static suspension of loads.
The stress limits of the chains are calculated values. The chains have not been tested.
Depending on the winding, the reel can give up to 1.0 cm.
- Diameter: 2.5 mm
- Internal width: 4.5 mm
- Length: 40 m
- Spool width external: 95 mm
- Spool diameter: 200 mm
- Partition: 14 mm
- Max. loading weight: 30 kg
- Weight per 100 metre: 11 kg
- Max. load-carrying capacity: 30 kg
- Material: Steel
- Surface: Brass plated
- DIN: 5685-2
- Width Package: 213.00
- Height Package: 118.00
- Depth Pagage: 212.00
- Cross Weight: 146.00
