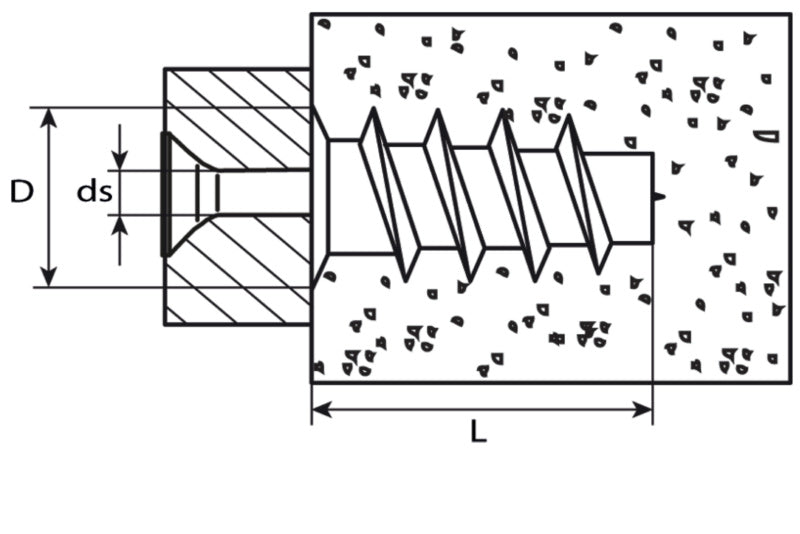

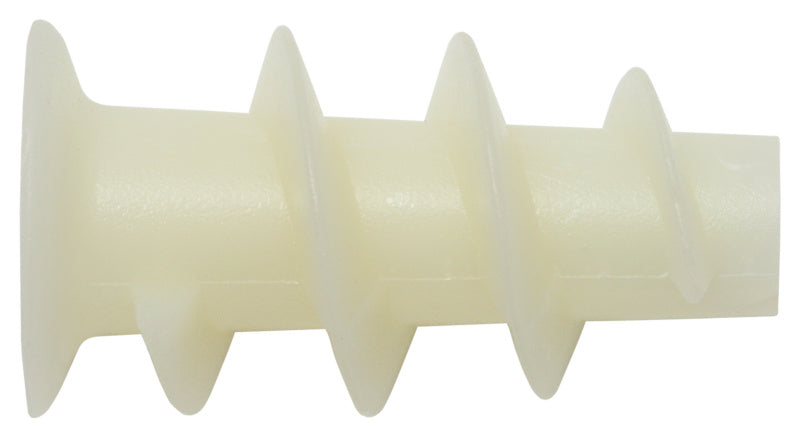

Plasterboard plugs, plastic
- Nominal diameter: 13 mm
- Nominal length: 24 mm
- Suitable for screw diameter min.: 4.0 mm
- Suitable for screw diameter max.: 6.0 mm
- Material: Nylon (polyamide)
- Drill hole diameter: 10 mm
- Min. drill hole depth: 60 mm
Exclusively for business customers
- Price display and ordering for customers after registration
- Register now and access more than 50,000 products
Variants
Description
Application
Technical data
Documents
Non-load-bearing masonry, plaster or insulation must be taken into account. These are not considered anchoring substrates.
This information is based on factory testing. It should be considered a general recommendation and must be adapted to the respective materials by local testing. A safety factor must be taken into account. The information does not apply to cases requiring technical approval. It does not constitute approval. Recommended safety value: 5x.
This information is based on factory testing. It should be considered a general recommendation and must be adapted to the respective materials by local testing. A safety factor must be taken into account. The information does not apply to cases requiring technical approval. It does not constitute approval. Recommended safety value: 5x.
- Nominal diameter: 13 mm
- Nominal length: 24 mm
- Suitable for screw diameter min.: 4.0 mm
- Suitable for screw diameter max.: 6.0 mm
- Material: Nylon (polyamide)
- Drill hole diameter: 10 mm
- Min. drill hole depth: 60 mm
