Brake line connector
Brake line connector
Brake line connector

swg-schraubenwerk

Brake line connector

  • Thread type x Thread diameter (metric thread): M12
  • Drive type: Hexagon
  • Nominal length: 29 mm
  • Outer diameter: 12 mm
  • Thread diameter (metric thread): 12 mm
  • Internal diameter: 4.5 mm
  • Suitable for brake line diameter: 4.75 mm
  • Width across flats: 17 mm
  • Pitch: 1 mm
  • Material: Free machining steel
Go to product variants

Exclusively for business customers

  • Price display and ordering for customers after registration
  • Register now and access more than 50,000 products
Log in/Register
make contact
Call customer service at +49 7942 100-0
Variants
Description
Application
Technical data
Documents
Filters

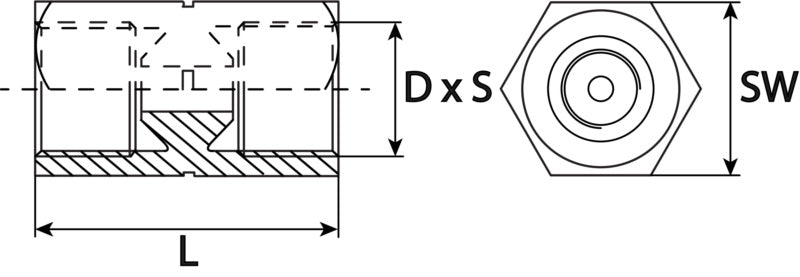

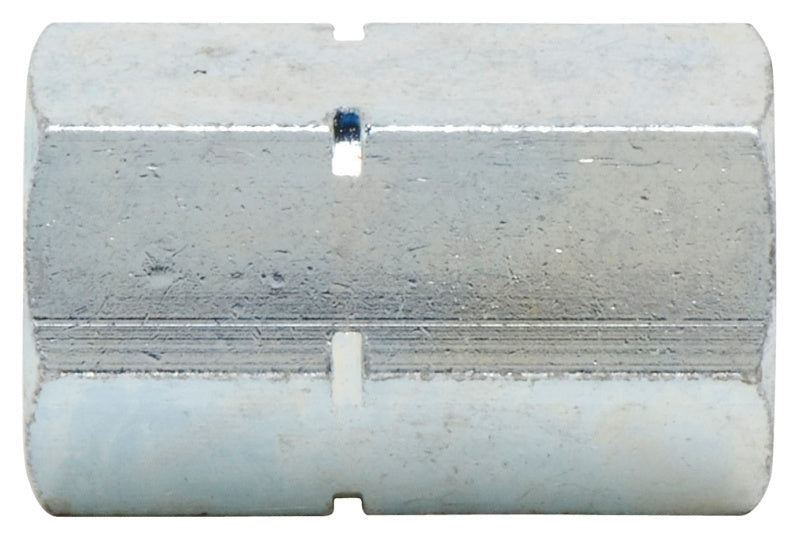

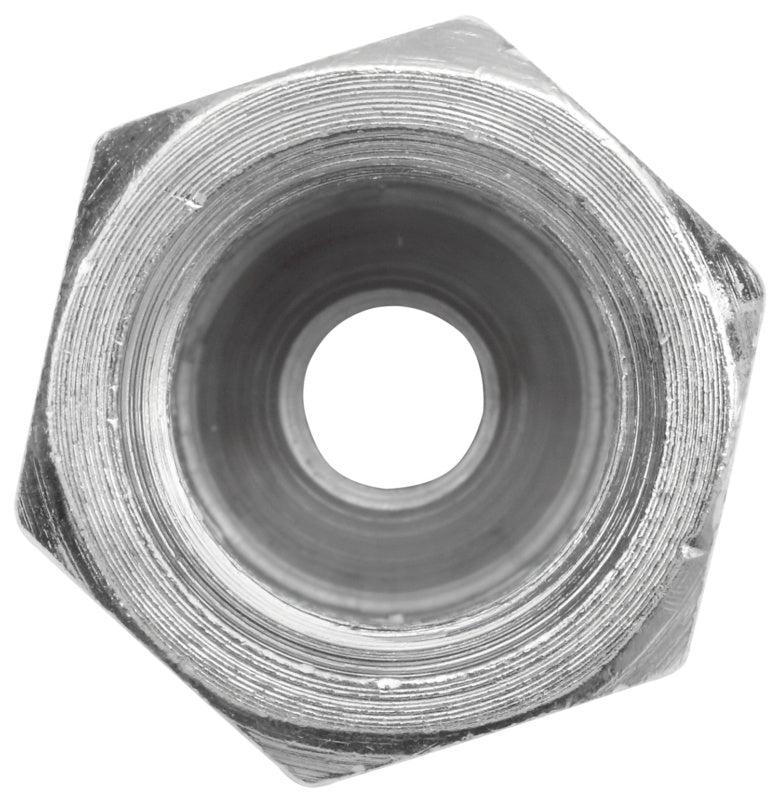

Brake line connector with two female threads (inner cone in nipple, outer cone in connector)
Thread: M10x1
  • Thread type x Thread diameter (metric thread): M12
  • Drive type: Hexagon
  • Nominal length: 29 mm
  • Outer diameter: 12 mm
  • Thread diameter (metric thread): 12 mm
  • Internal diameter: 4.5 mm
  • Suitable for brake line diameter: 4.75 mm
  • Width across flats: 17 mm
  • Pitch: 1 mm
  • Material: Free machining steel
